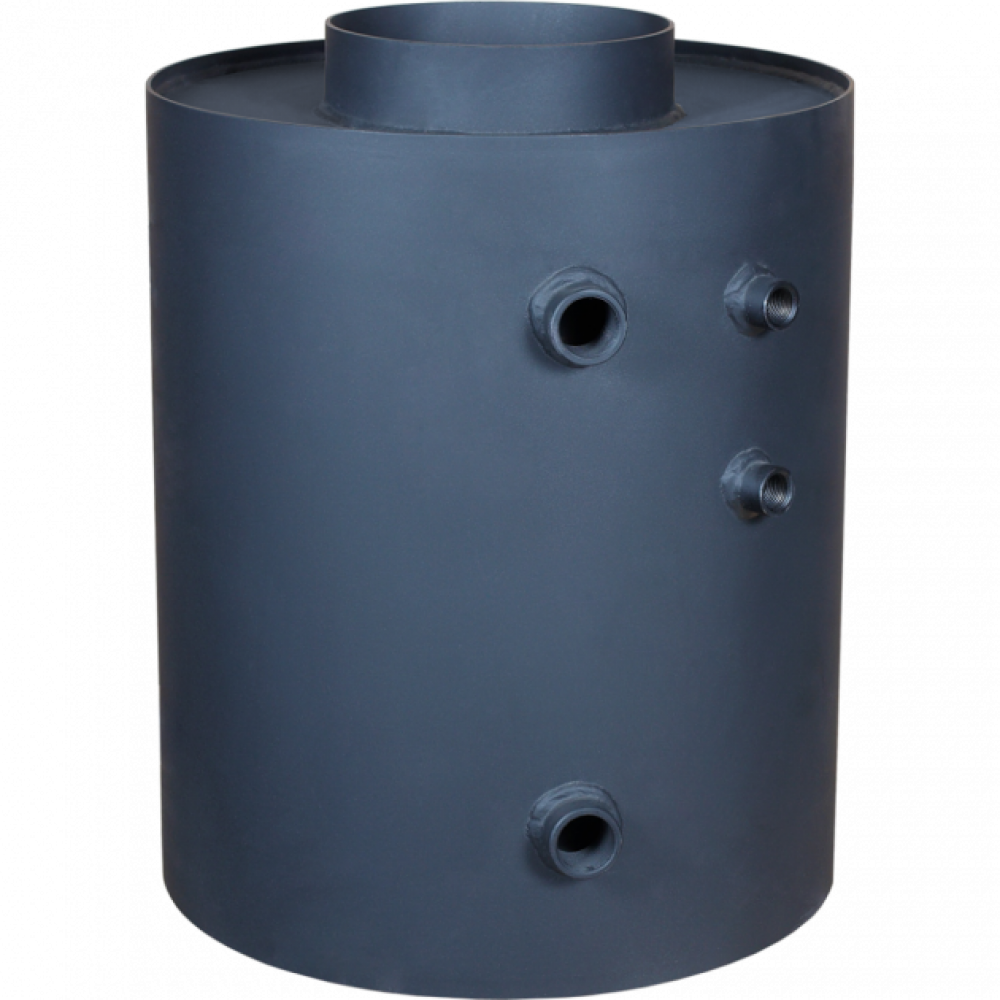

Turbodim Kratki with water circuit (vertical heating of water)

Turbodim NP is a fireplace base designed for installation on the fireplace opening. It is used to renew part of the thermal energy that is contained in the flue gases that come from the combustion chamber of the fireplace furnace. Heat is transferred either to warm drinking water or through a central heating system. in the heat of life's confusion. This is very economical in terms of heat, so it does not require the addition of additional heating, and it eliminates the excess heat of flue gases that is needed by the smoke gas. Hot flue gases flow through the turbo combustion chamber, heating the water in the exchanger circuit. Hot water is supplied through the outlet located on the boiler station of the exchanger. Turbodym is used for operation with heater and sub-heater installations for central combustion furnaces for solid burning, gas, oil, electricity and heat pumps and solar batteries.

Turbodym is made from steel intended for operation at high temperatures. The material used for installation in central combustion systems ensures high reliability of the device, heat resistance and durable operation.

The central part of the device is the combustion chamber, where there is a system of tubes that moves the surface of the water from the heating agent, such as flue gases.

Characteristics:

Weight (kW): - up to 9 kW to be kept under the weight of the fireplace firebox

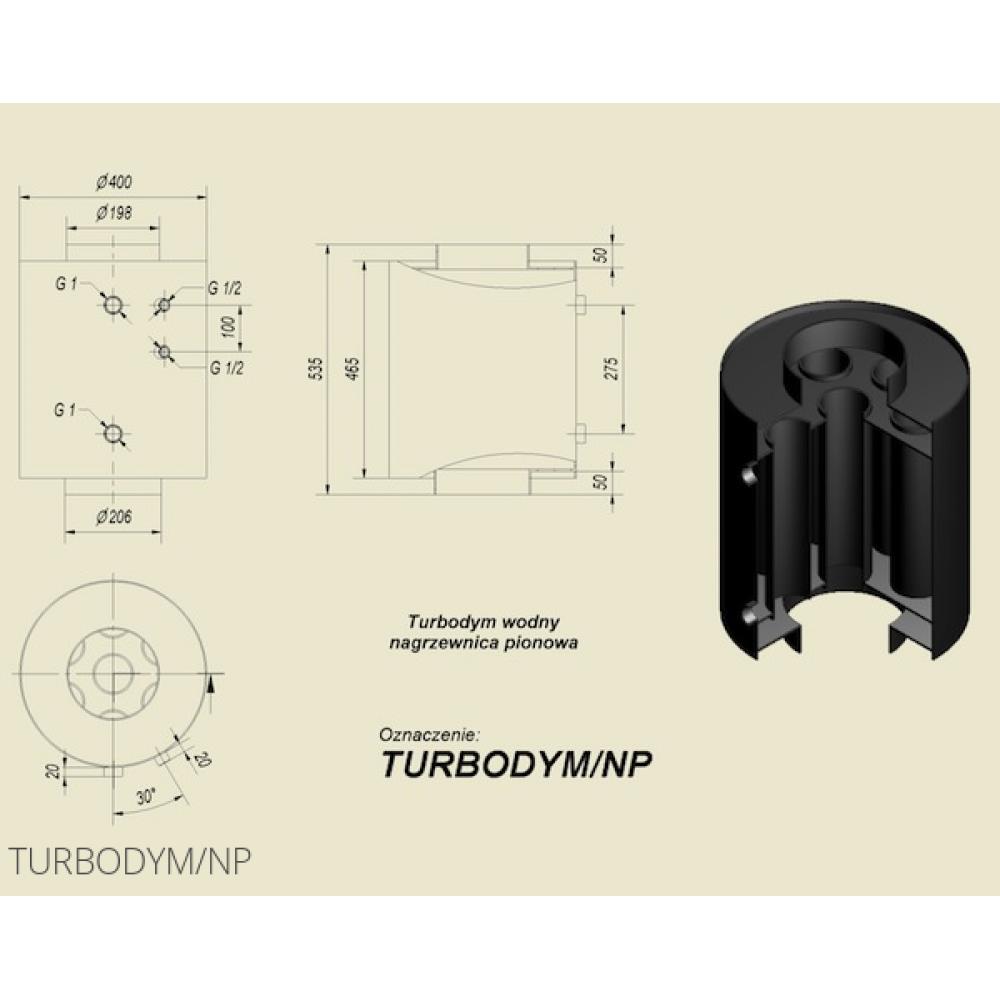

Hanging dimensions. x width (mm): 535x400

Diameter of the transition from the fireplace to the fire chamber (mm): 200

Thermal CCD (%): up to 70% (to be stored in the CCD of the combustion chamber)

Vaga (kg): 49

Water capacity (l): 26

Respect! After installing the device at the transition from the fireplace to the firebox, ensure easy access to the new one.
