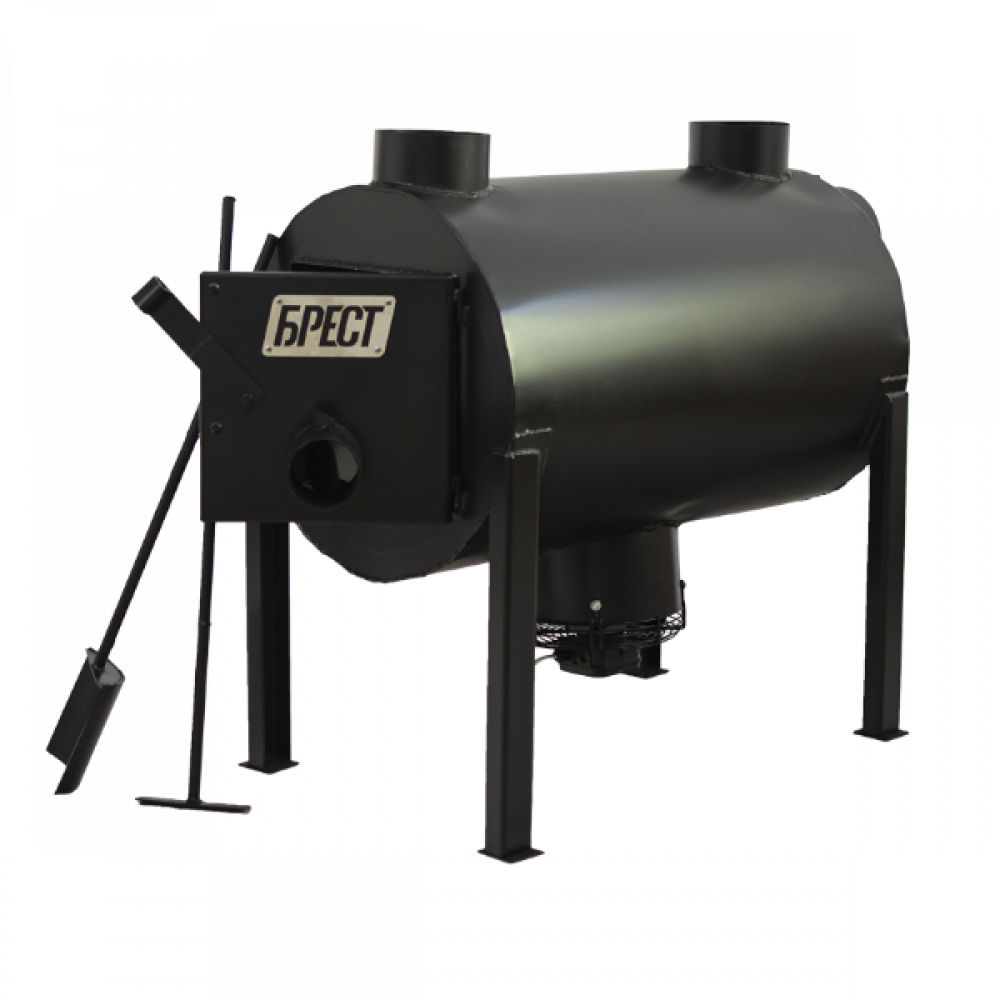

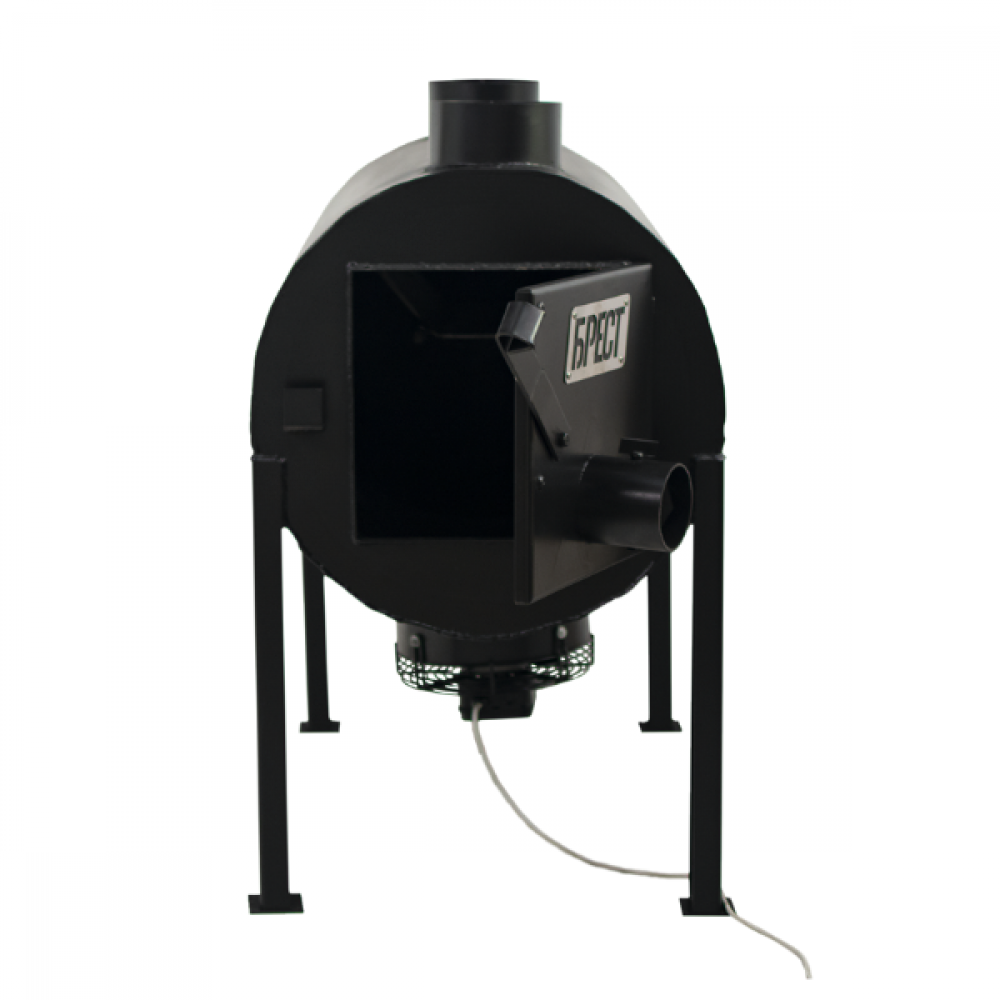

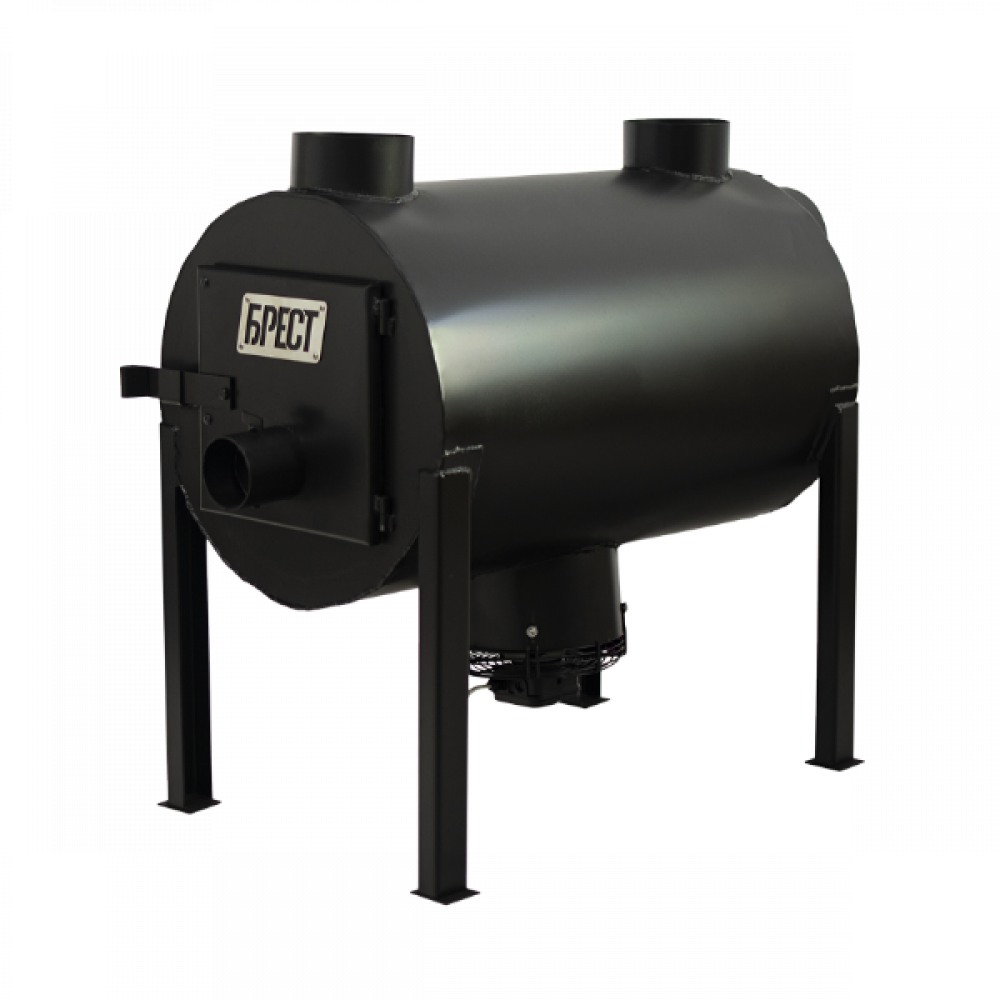

Potbelly stove Brest 350 plus set with fan

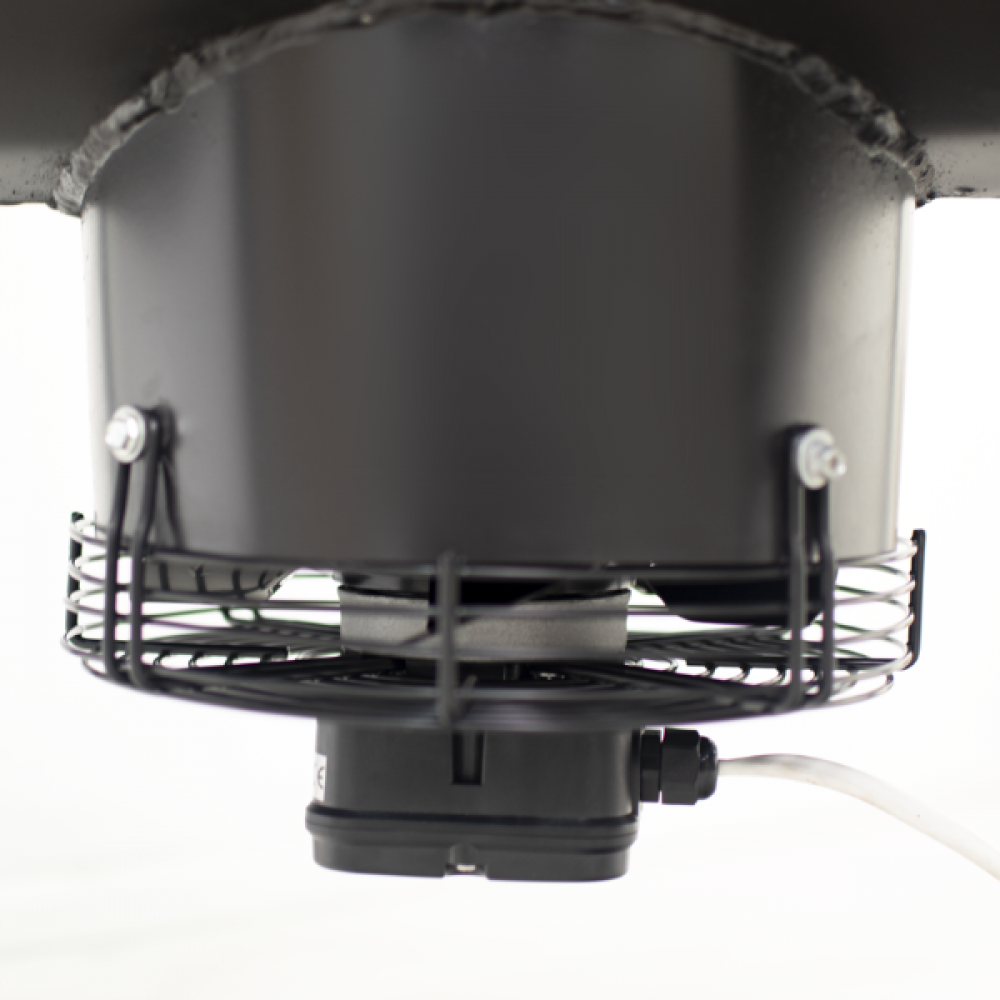

The Buleryan Brest 350 plus with a fan implements the principle of forced convection. For this purpose, an axial-type blower fan with a power of only 59 W is already installed on the stove. Despite the small dimensions of the fan, its productivity is 619 m3/hour. Such characteristics allow you to uniformly heat a room with a volume of up to 350 m3 in less than an hour.

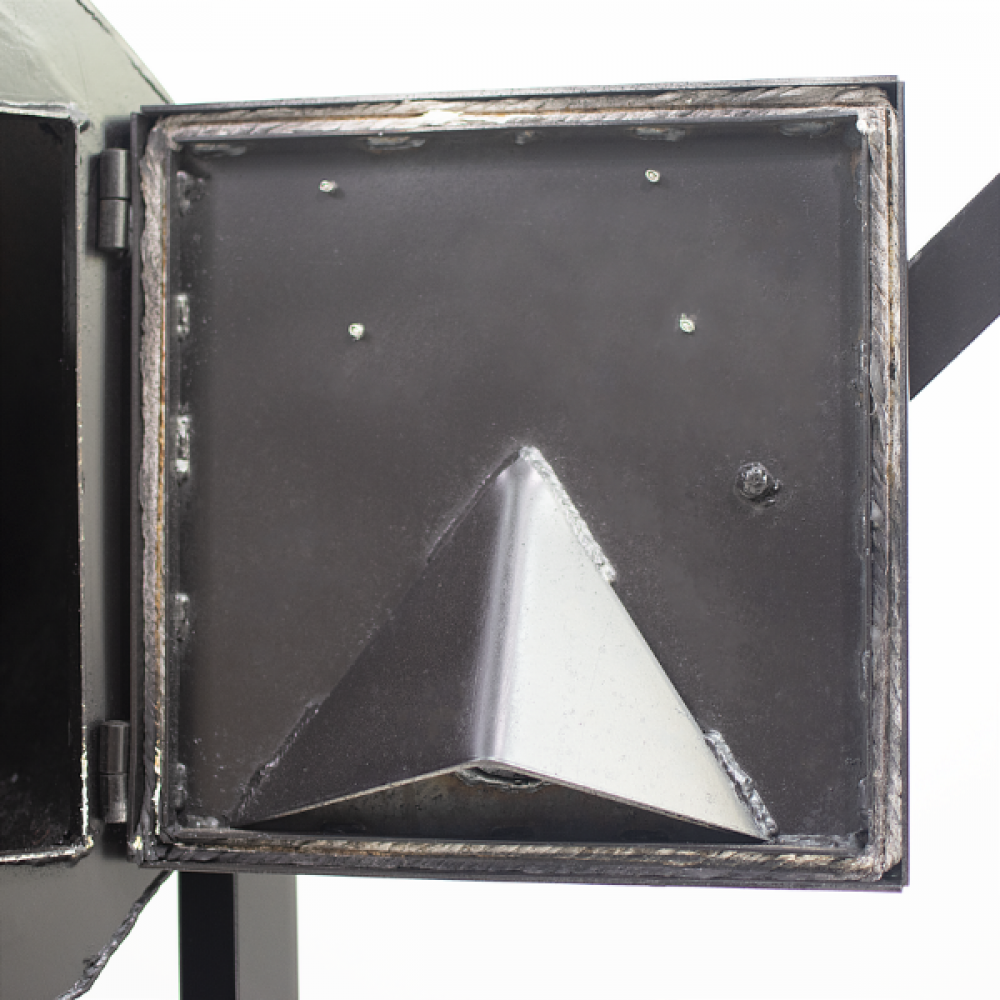

Buleryan can operate in two modes: combustion mode and smoldering mode. The first mode is used when igniting the stove and for quickly warming up the room. The smoldering mode maintains the set temperature in the room after heating and allows you to significantly save fuel material. The transition between modes and adjustment of combustion intensity is carried out by two slide valves on the door and chimney pipes.

The output temperature from the heat pipes when the fan is on can reach:

• In combustion mode - 80-120 degrees;
• In smoldering mode – up to 70 degrees.

The operating temperature of the fan is up to 200 degrees. In the event of a power outage, the oven must be switched to smoldering mode. Operating the oven in this mode is allowed for no more than one hour. If it is necessary to operate the buleryan for a longer period of time with the fan turned off, it must be removed from the stove.

The furnace is equipped with a secondary gas afterburning chamber.

To ensure uniform distribution of warm air throughout the room, it is advisable to use 150-diameter corrugated pipes or galvanized boxes.
