Description

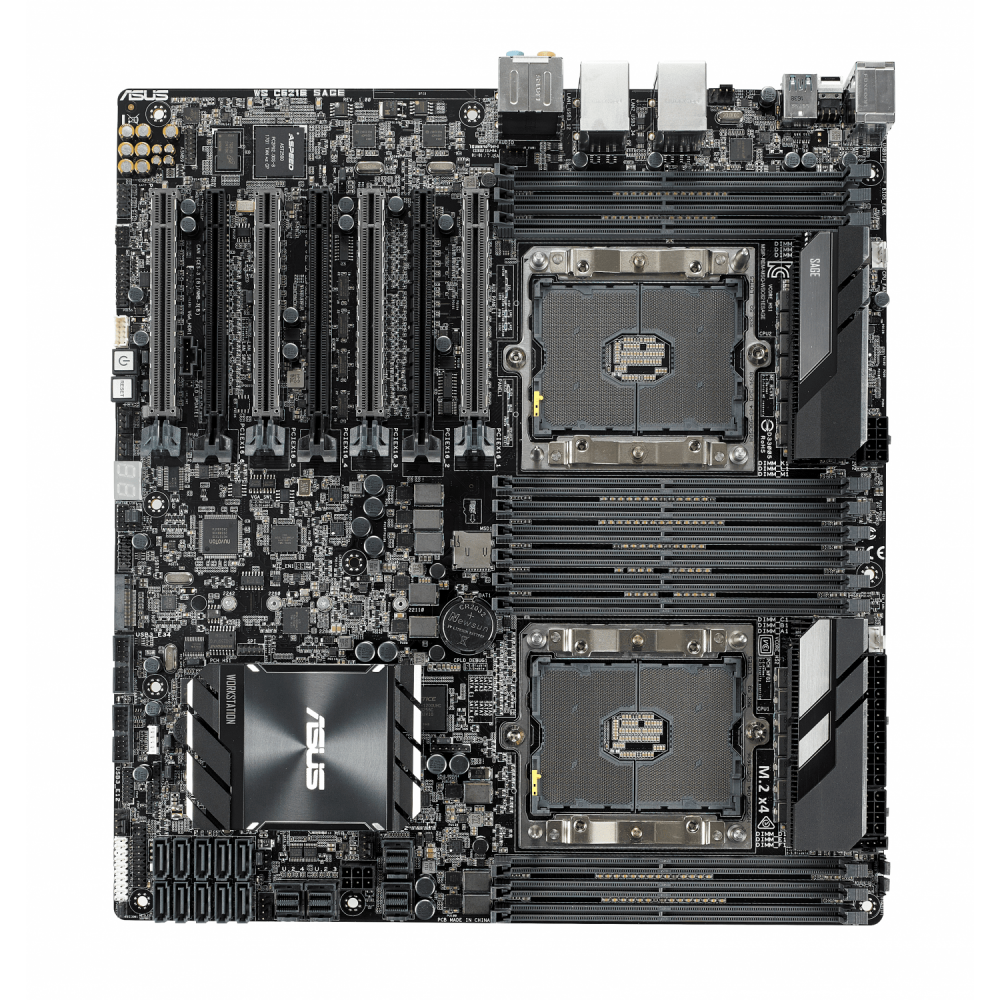

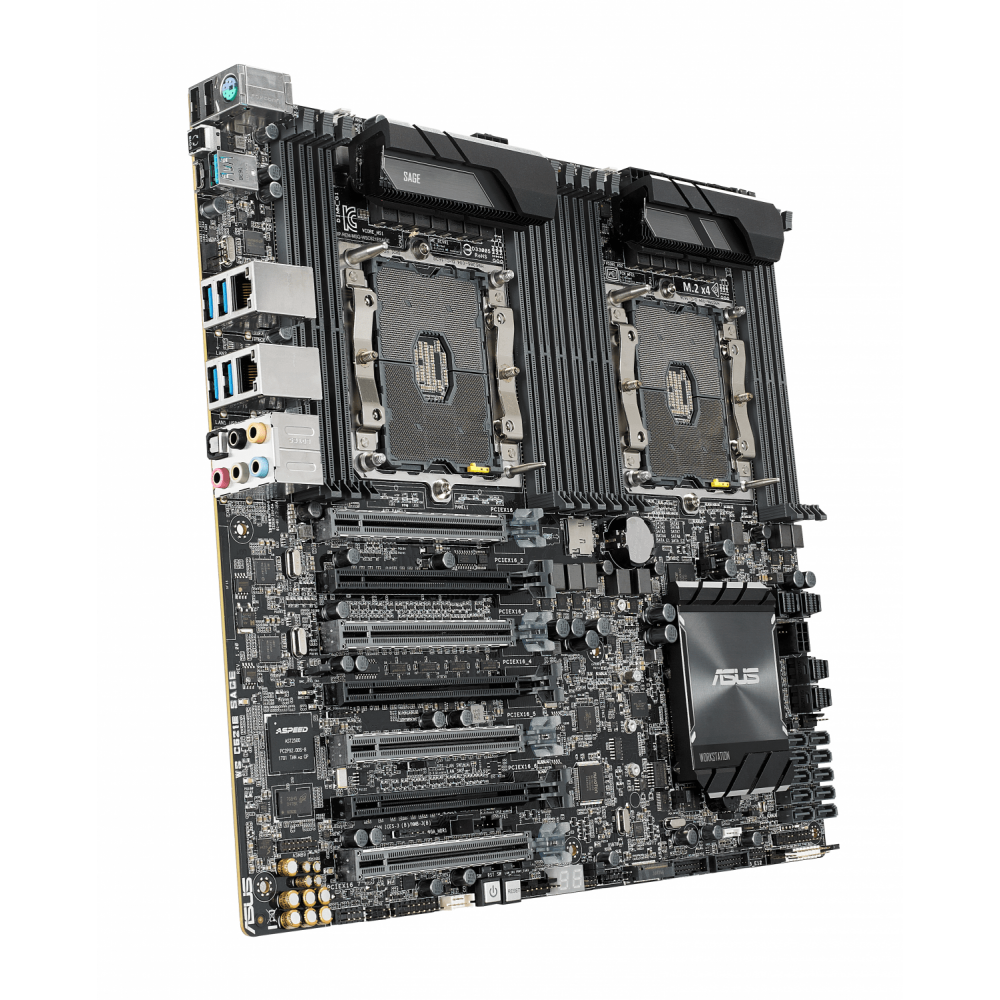

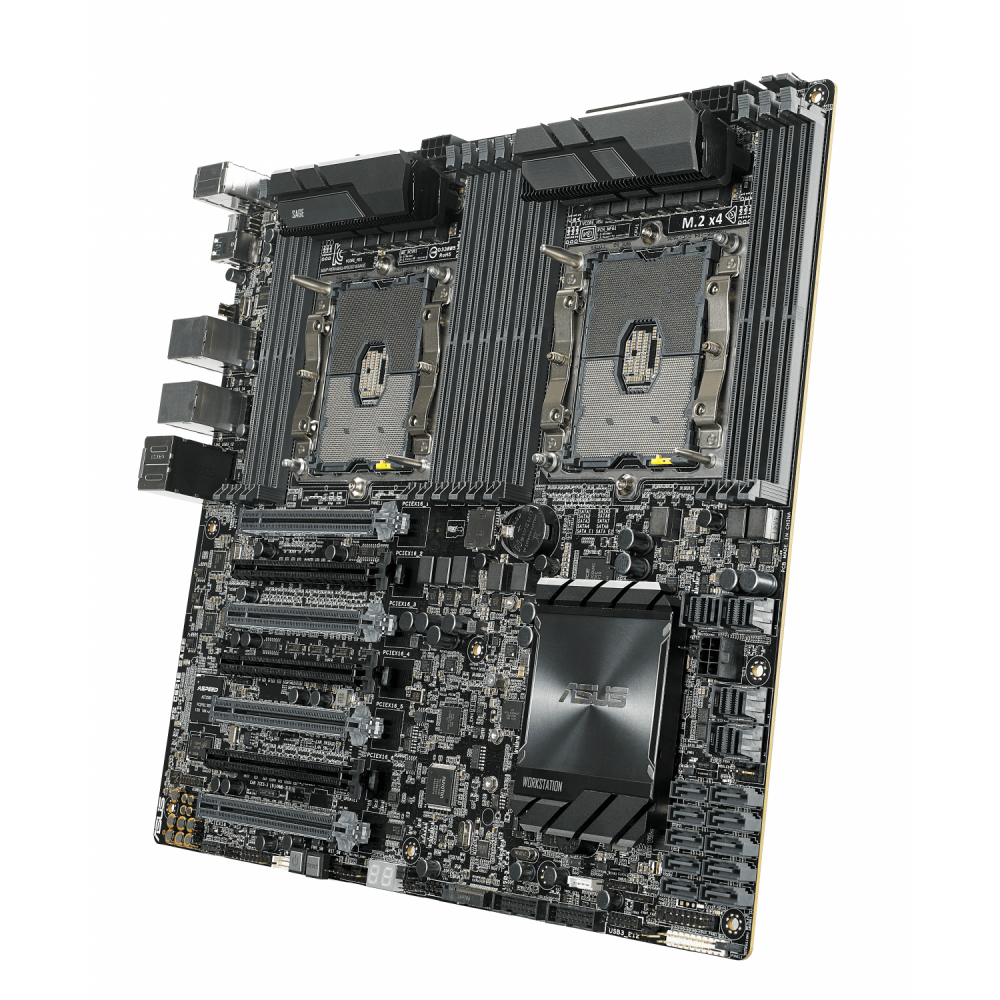

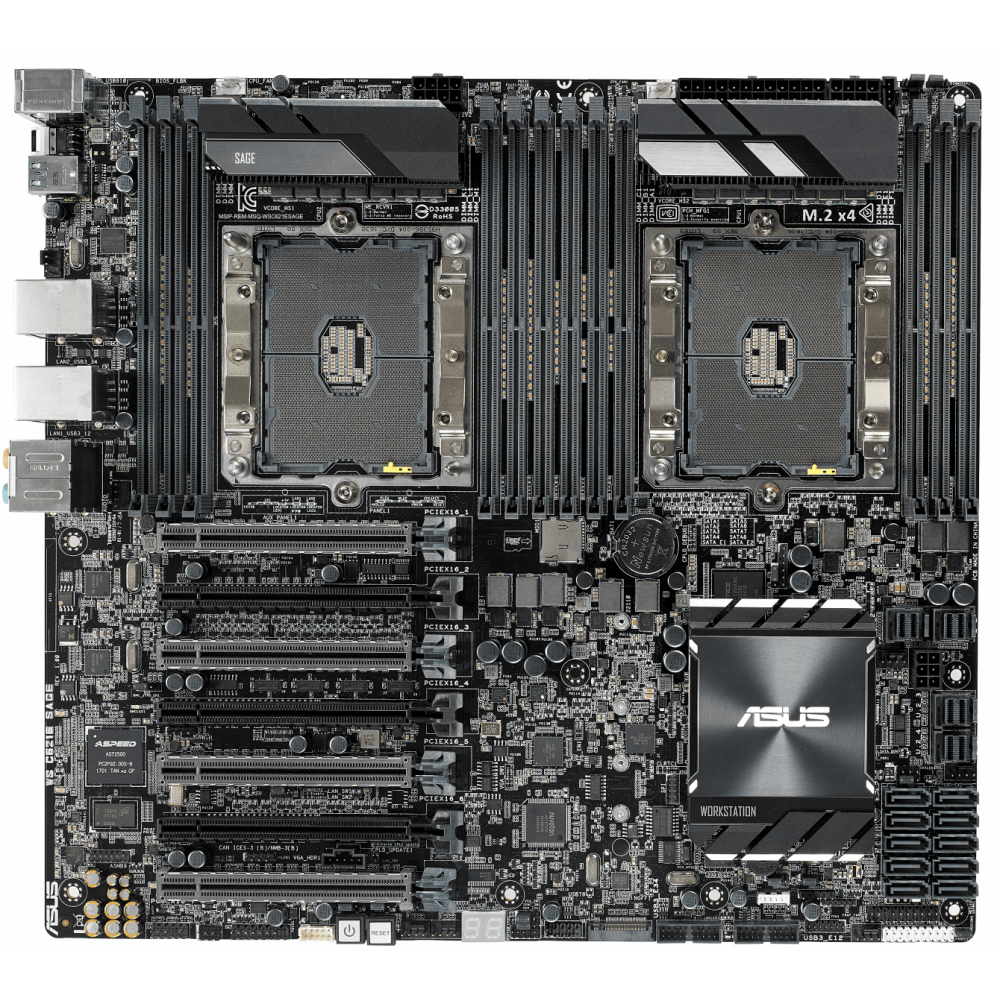

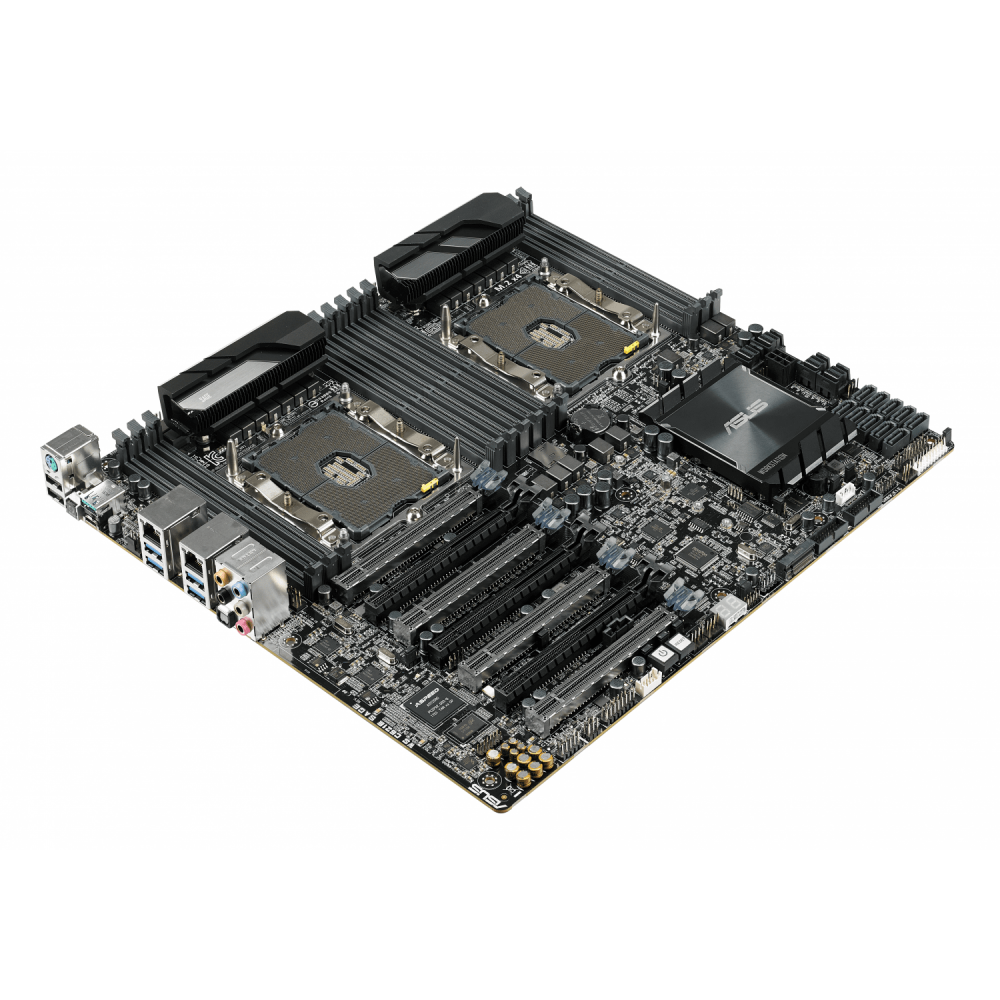

Description Motherboard server ASUS WS C621E SAGE BMC
- Output of D-Sub (VGA) optionally
- 2 x PCIe 3.0 of x16 (Single in x16 mode and double x8/x8)
- 3 x PCIe 3.0 of x16 (x16 mode)
- 2 x PCIe 3.0 of x16 (x8 mode)
- Motherboard on the basis of Intel C621 chipset with four graphic slots and 12 slots of memory
- Support of the multiprocessor graphic SLI and CrossFireX configurations (up to 4 video cards)
- Two connectors for processors of Xeon with acceleration support
- Wide choice of modern interfaces: U.2, M.2, USB 3.1 (Type-C/Type-A)
- High-quality element base and excellent energy efficiency
- Application for administration of ASUS Control Center and function of convenient update of a firmware USB BIOS Flashback
Installation to four video cards This motherboard is created by
on the basis of a chipset of Intel C621 and supports the multiprocessor graphic configurations collected on NVIDIA SLI and AMD CrossFireX technologies.
Distinctive feature of the WS C621E SAGE board is existence of four full-high-speed slots of PCIe Gen3 x16 in which it is possible to install up to four video cards of two-slot thickness. Having integrated these video cards in a uniform graphic subsystem, the user will manage to achieve magnificent performance in professional applications.
Two connectors for Intel processors of Xeon. Support of two Intel processors of Xeon with an opportunity acceleration
WS C621E SAGE Motherboard allows to install two processors of Xeon at once and to disperse them, using unique features of BIOS.
12 slots for the DDR4 memory modules error correcting
On the WS C621E SAGE board 12 slots for installation of the DDR4 memory modules error correcting are available. The large volume of random access memory – a necessary condition for the high speed of work of professional applications, especially when processing a multimedia content.
RAID0 arrays Support on the basis of NVMe-drives
Solid-state drives connected to the WS C621E SAGE board can be integrated in RAID0 array to achieve a bigger data exchange rate.
Built-in interfaces M.2 and U.2 (32 Gbps)
WS C621E SAGE Motherboard allows to connect solid-state drives of different form factors via interfaces M.2 and U.2, and they will be capable to involve completely the throughput of the bus PCI Express 3.0 x4 (32 Gbps).
Built-in USB interface 3.1 (10 Gbps)
This motherboard is allocated with USB ports of the USB 3.1 standard which throughput (10 Gbps) twice exceeds possibilities of USB 3.0. They are provided by the standard Type-A connector providing backward compatibility with devices of the previous generations, and the modern reversible Type-C connector.
Built-in audio system on the basis of the codec of Realtek
forms the Basis of the audio system of the WS C621E SAGE motherboard the Realtek S1220A codec which has excellent characteristics. So, the ratio makes a signal noise of this audiosolution 120 dB for a linear stereooutput and 113 dB for a linear input.
DTS Headphone Technology: X
Innovative technology creating effect of spatial sounding when using earphones.
Built-in ASMB9-iKVM BMC controller is an effective solution for remote monitoring and control of the computer via the convenient web interface which works in any of popular web browsers. It provides the interface, independent of the operating system and the platform, for performing such actions as update of a firmware, adjustment of fans, record of the BSOD screen, etc.
Besides, the ASUS company offers the software ASUS Control Center – the application for centralized management of computer infrastructure on the basis of workstations, servers and digital boards of production of ASUS. Among its opportunities there is following: remote update of BIOS, remote monitoring of a set of computers via mobile devices, software update by one mouse click.
Characteristic Motherboard server ASUS WS C621E SAGE BMC
Article: span do not have WS_C621E_SAGE_BMC >- Form factor EEB
- Processor (socket type) Intel Socket P 3647
- Random access memory of DDR4 (quantity of slots), piece 12
- Random access memory of DDR3 (quantity of slots), piece
- Random access memory of DDR2 (quantity of slots), piece there is no
- Chipset Intel C621
- Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet
- Wireless interfaces (Wi-Fi) there Is no
- Model of the built-in video card Aspeed AST2500
- Assignment for servers
- Form factor EEB
- Guarantee, month 36
- Processor (socket type) Intel Socket P 3647
- Processor (quantity of socket) 2
- Random access memory of DDR4 (quantity of slots), piece 12
- Random access memory of DDR3 (quantity of slots), piece is not present
- Random access memory of DDR2 (quantity of slots), piece there is no
- Random access memory (ECC support) is
- Chipset Intel C621
- PCI Express Slot (PCI-E x16 (x16)), span do not have piece > 3 of x PCI-E x16 (x16) of v3.x
- PCI Express Slot (PCI-E x16 (x8)), piece 4 of x PCI-E x16 (x8) of v3.x
- PCI Express Slot (PCI-E x16 (x4)), piece
- Slot of PCI Express (PCI-E x8), piece there is no
- Slot of PCI Express (PCI-E x4), piece there is no
- Slot of PCI Express (PCI-E x1), piece there is no
- Slot of PCI, piece there is no
- AGP Slot there is no

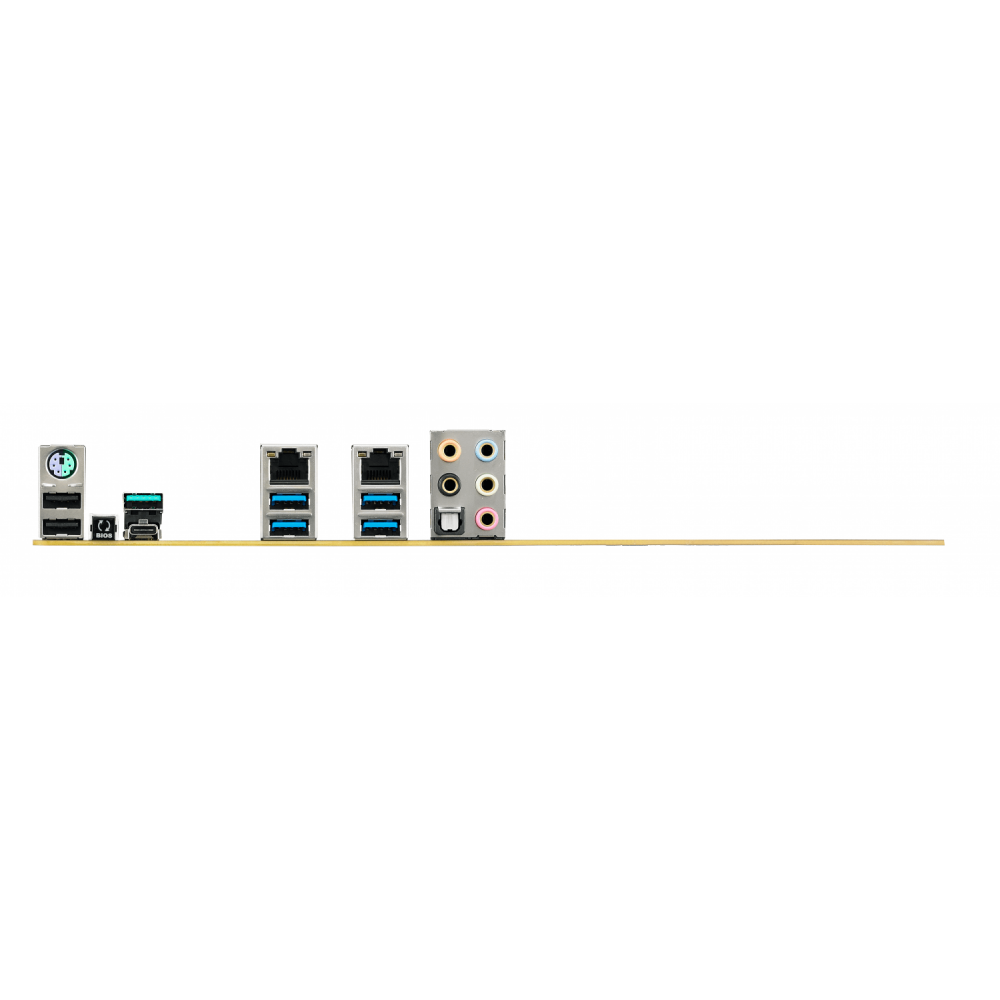

- Type-C/Thunderbolt 3 USB 3.1 Port 1 x USB 3.0/3.1 of Type C (Gen 1 up to 5Gbps)
- Gen 2 Type-A/Type-B/Type-CTM USB 3.1/3.2 Port (up to 10Gbps) 1 x USB 3.1 of Gen 2 Type-A
- Gen 1 Type-A/Type-B/micro USB USB 3.0/3.1/3.2 Port (up to 5Gbps) 4 x USB 3.0/3.1 of Gen 1 Type-A, 4 x USB 3.0/3.1 Gen 1 Type-A (on a payment, for a frontal output)
- Type-A/Type-B/mini USB/micro USB USB 2.0 Port (up to 480Mbps) 2 x USB 2.0 Type-A, 2 x USB 2.span do not have 0 Type-A (on a payment, for a frontal output) >
- VGA (D-Sub) Port 1 of x D-Sub (VGA) (on a payment)
- Port DVI, piece
- HDMI (mini/micro) Port there Is no
- Thunderbolt Port there is no
- DisplayPort (mini/micro) Port there Is no
- PS/2 Port, piece 1
- COM (RS-232) Port 1 (on a payment, for a frontal output)
- Port (IEEE 1394) is not present
- LPT Port (IEEE 1284), piece there is no
- Connector of the TPM module, piece 1 (on a payment)
- Number of SATA3 ports (6gbit/c), to piece 10
- Number of SATA2 ports (3gbit/c), span do not have piece >
- Number of SATA Express ports (to 10gbit/c), span do not have piece >
- Mini PCI Express (Mini PCI-E, Socket 3), piece 1 x M.2 (Key M), 4 x U.2
- Support of program RAID RAID 0, RAID 1, RAID 10, RAID 5
- eSATA Port is not present
- Quantity of eSATA, piece there is no
- Number of IDE ports there is no
- Slot for FDD there is no
- Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet
- Network connection (quantity of LAN RJ-45), Mbps 2
- LAN controller Model Intel I210-AT
- Wireless interfaces (Wi-Fi) Is not present
- Fastening for antenna Wi-Fi is not present
- Wireless interfaces (Bluetooth/NFC) is not present
- Built-in sound processor Realtek S1220A
- Multichannel sound 7.1
- Will corrode 3.5 mm (mini-Jack), piece 5
- Optical output (S/PDIF) is
- Support of several video cards AMD 4-Way CrossFireX, NVIDIA 4-Way SLI
- Built-in video is
- Model of the built-in video card Aspeed AST2500
- Control button BIOS Flashback
- Cooling of the south bridge passive (radiator)
- General height of a product (H), mm 305
- General width of a product (W), mm 330
- Illumination Is not present
- Colour Dark gray ules wet asphalt anthracite
- Main power connector 24 - pin
- Number of power connectors of coolers (total with CPU Fan), piece 9
- Number of power connectors of coolers (CPU Fan), piece 2
