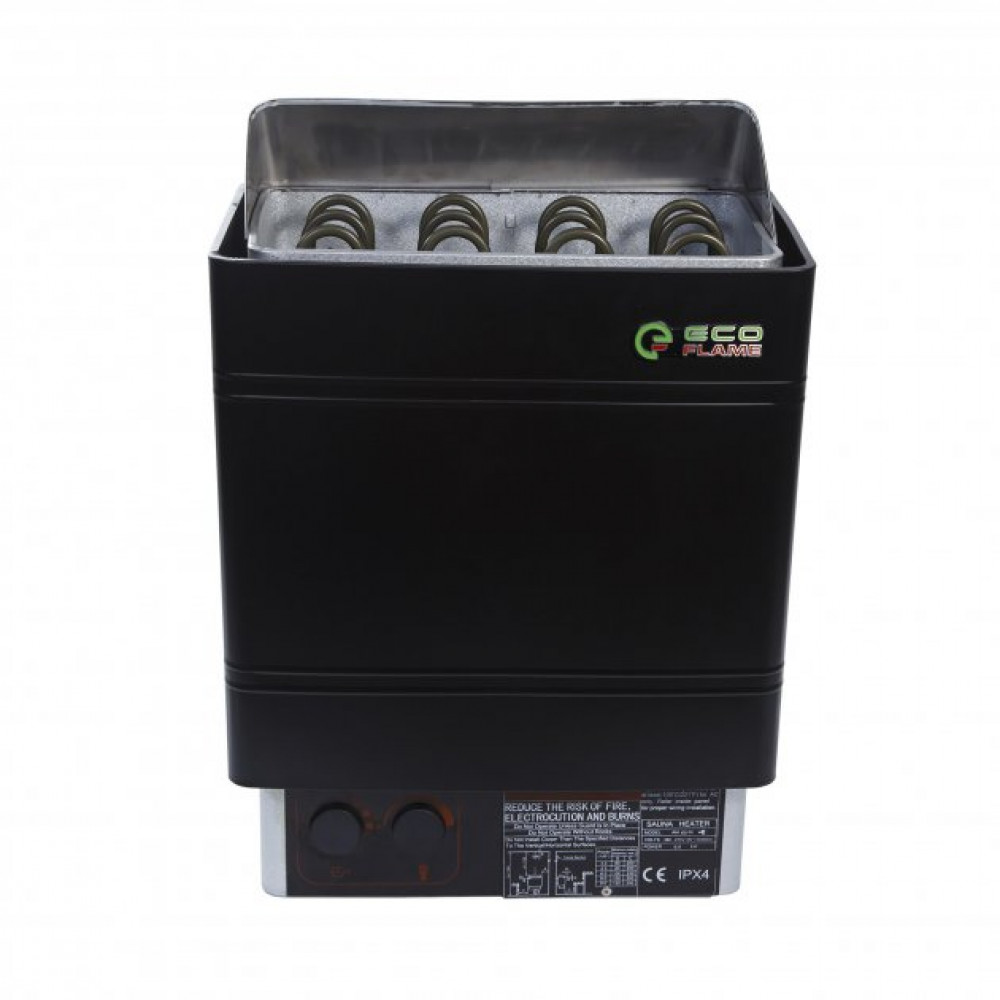

Electric heater EcoFlame AMC 60D, 6 kW, 9 cubic meters, 220/380V, with CON4 remote control

Wall-mounted electric heater stove for small steam rooms, capable of creating the atmosphere of a classic dry sauna. The heater is controlled using a remote control panel (included in the kit).

Features and benefits

• Compact heater for small saunas;
• Control using a remote control panel;
• High-quality heating elements for heating the room and heating stones;
• Galvanized galvanized plates to increase structural rigidity;
• Compact overall dimensions of the furnace, high heat resistance and corrosion resistance;

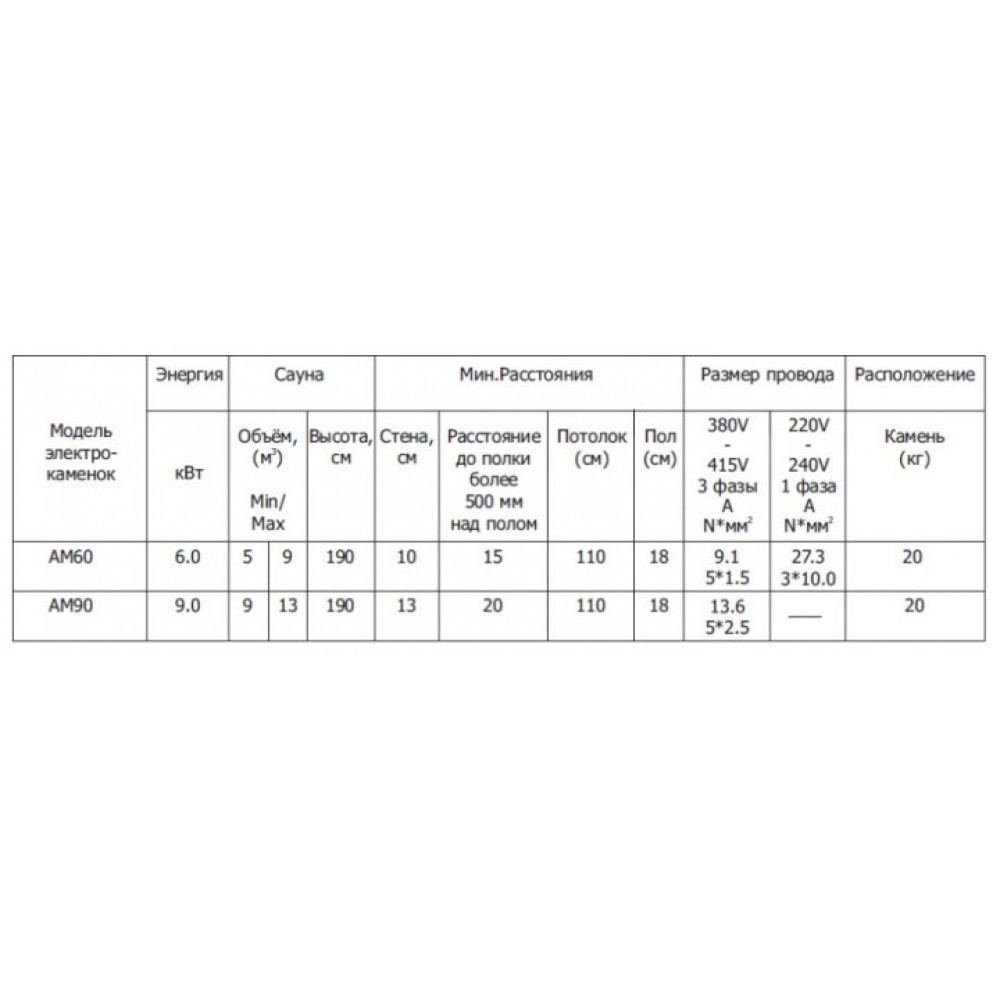

Technical characteristics

• Thermal power: 6 kW;
• Recommended room volume: 5-9 cubic meters;
• Operating hours: dry sauna (Finnish);

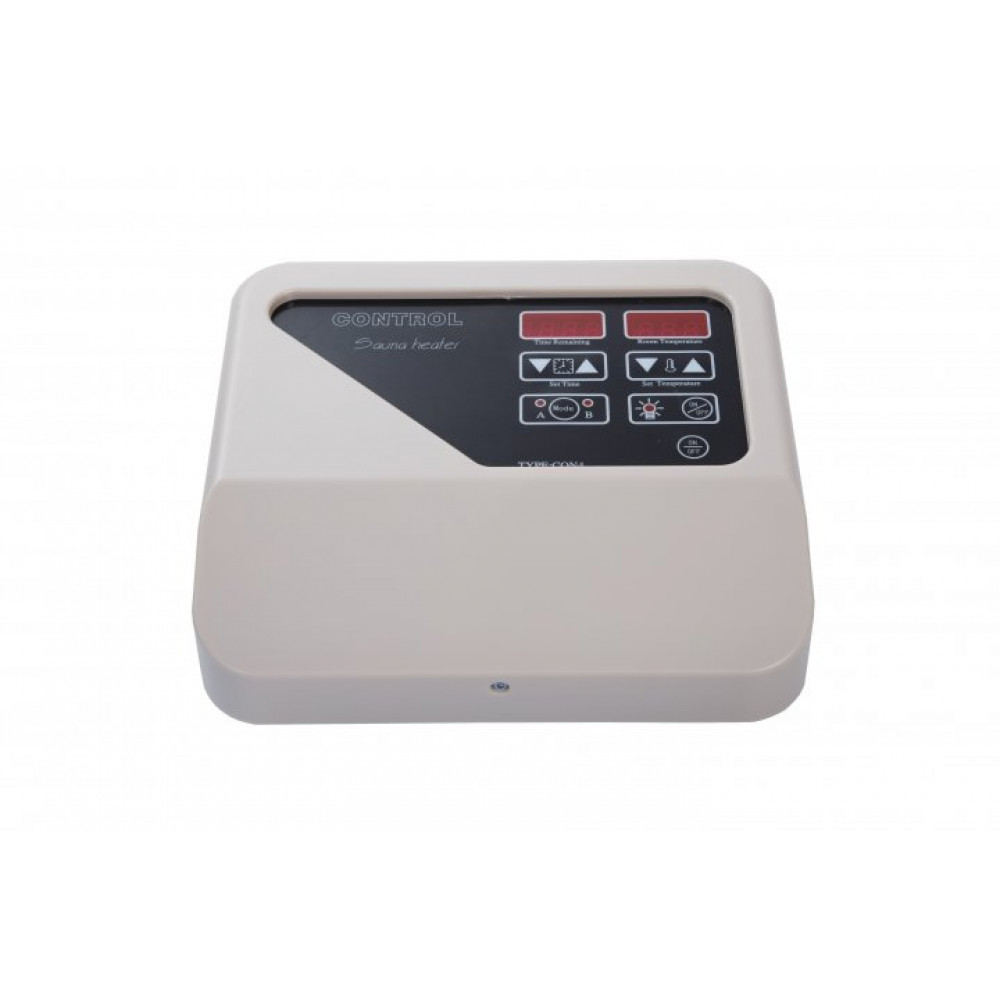

• Heater control: remote control panel (included);
• Mounting type: wall;

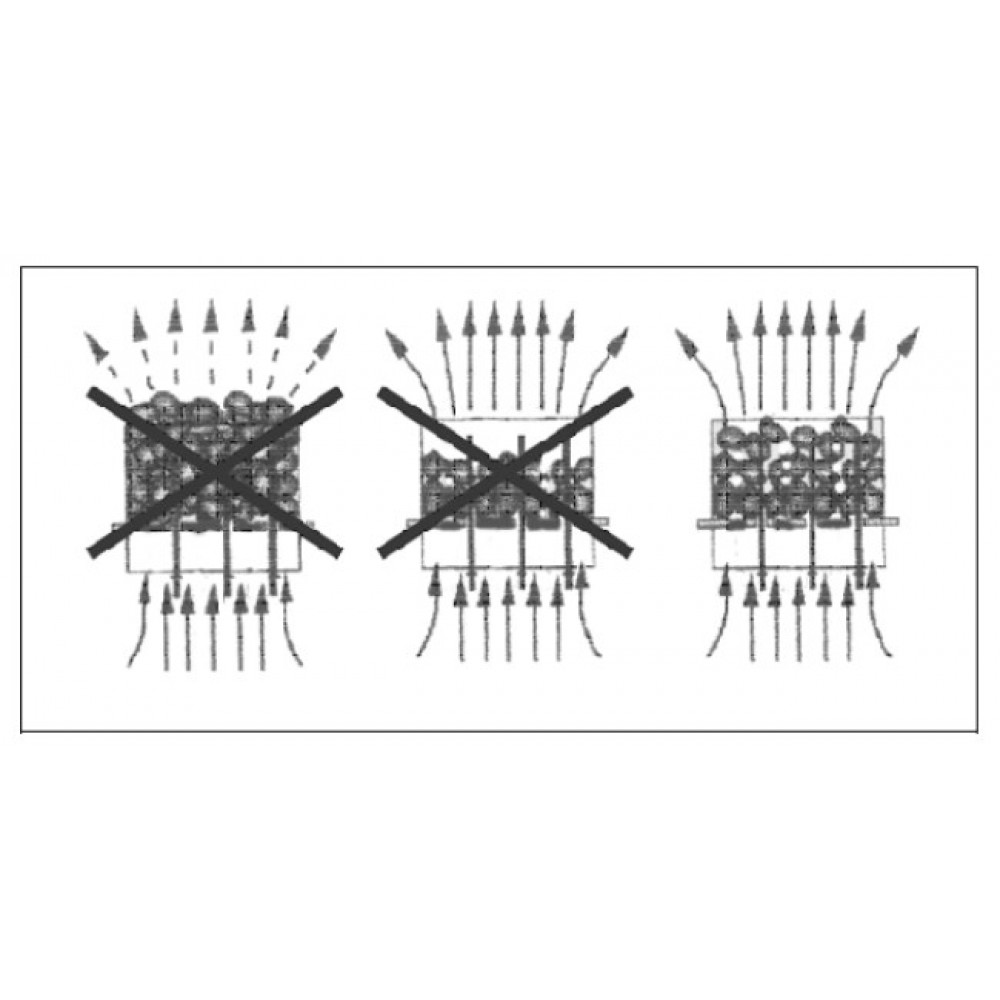

• Loading stones 20 kg (fine fraction 5-8 cm);

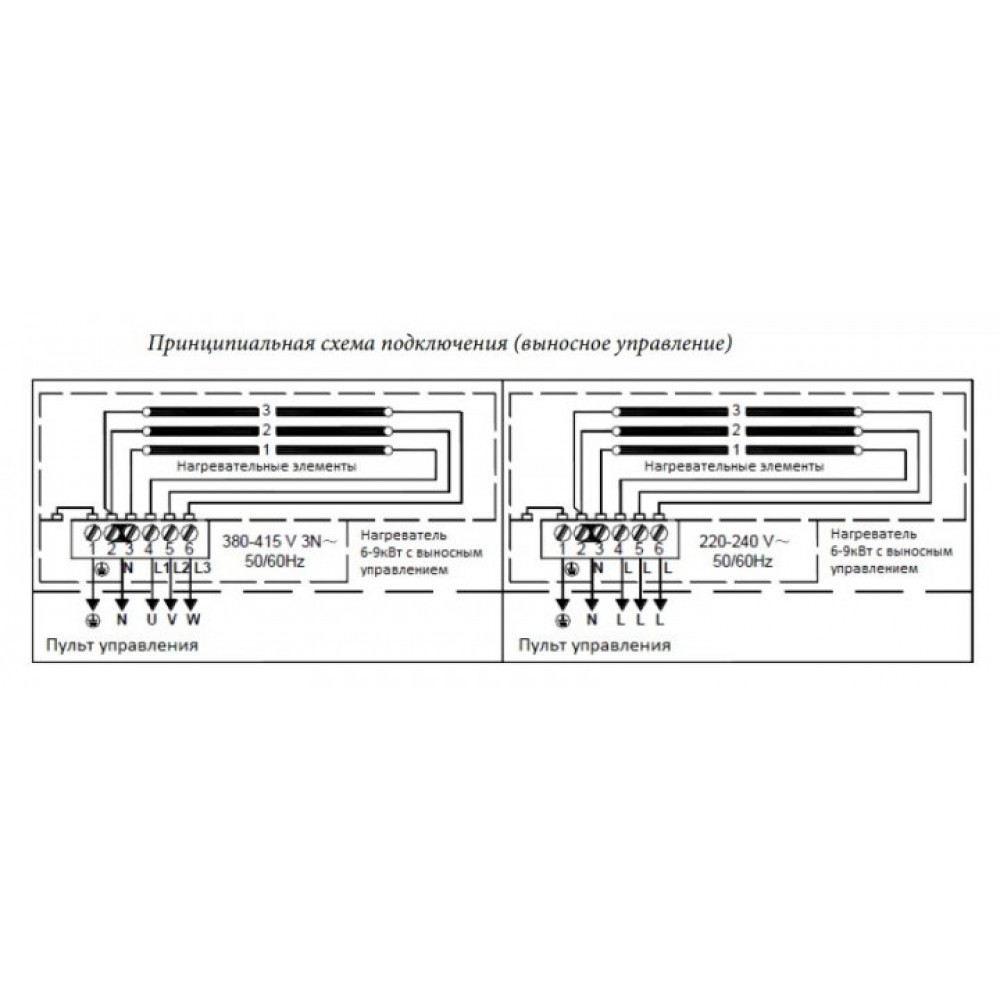

• Power supply (1 phase): 220-240 V, 27.3 A, cable 3 x 10 mm.sq.;
• Power supply (3 phase): 380-415 V, 9.1 A, cable 5 * 1.5 mm.sq.;
• Minimum ceiling height: 190 cm;

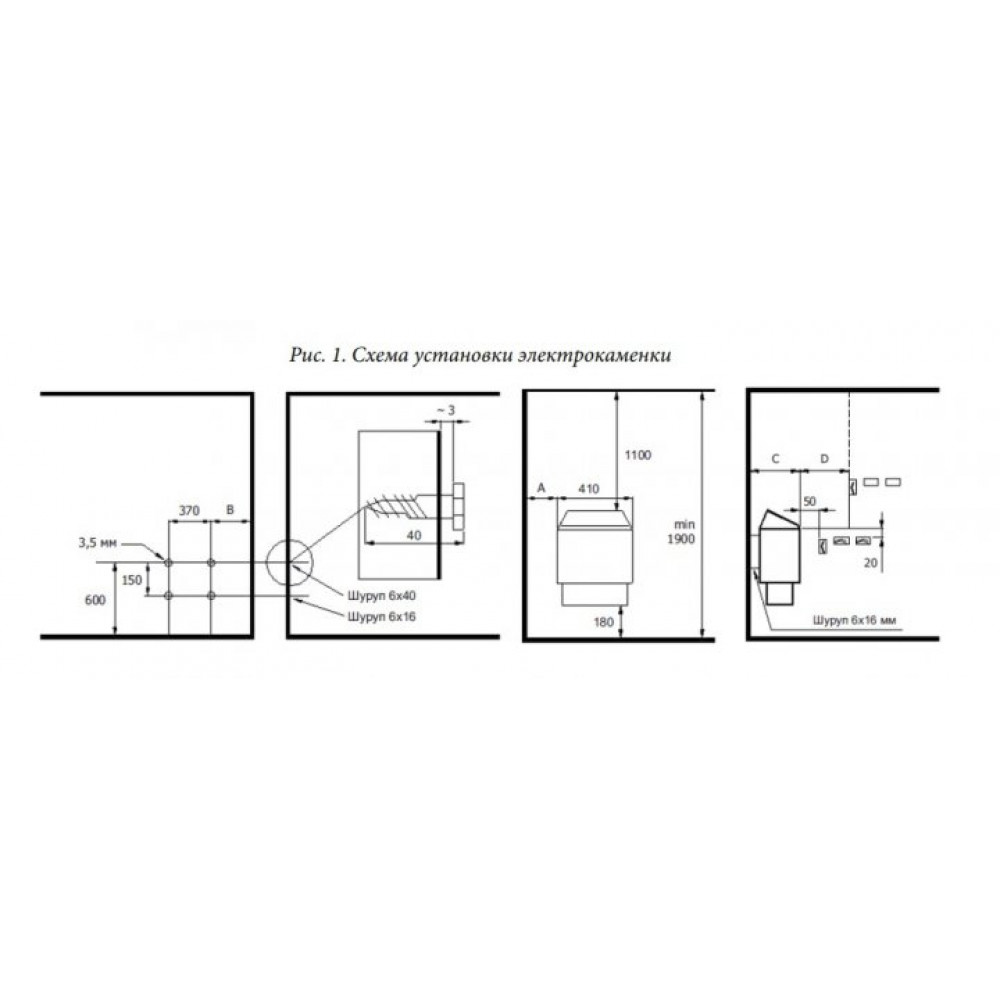

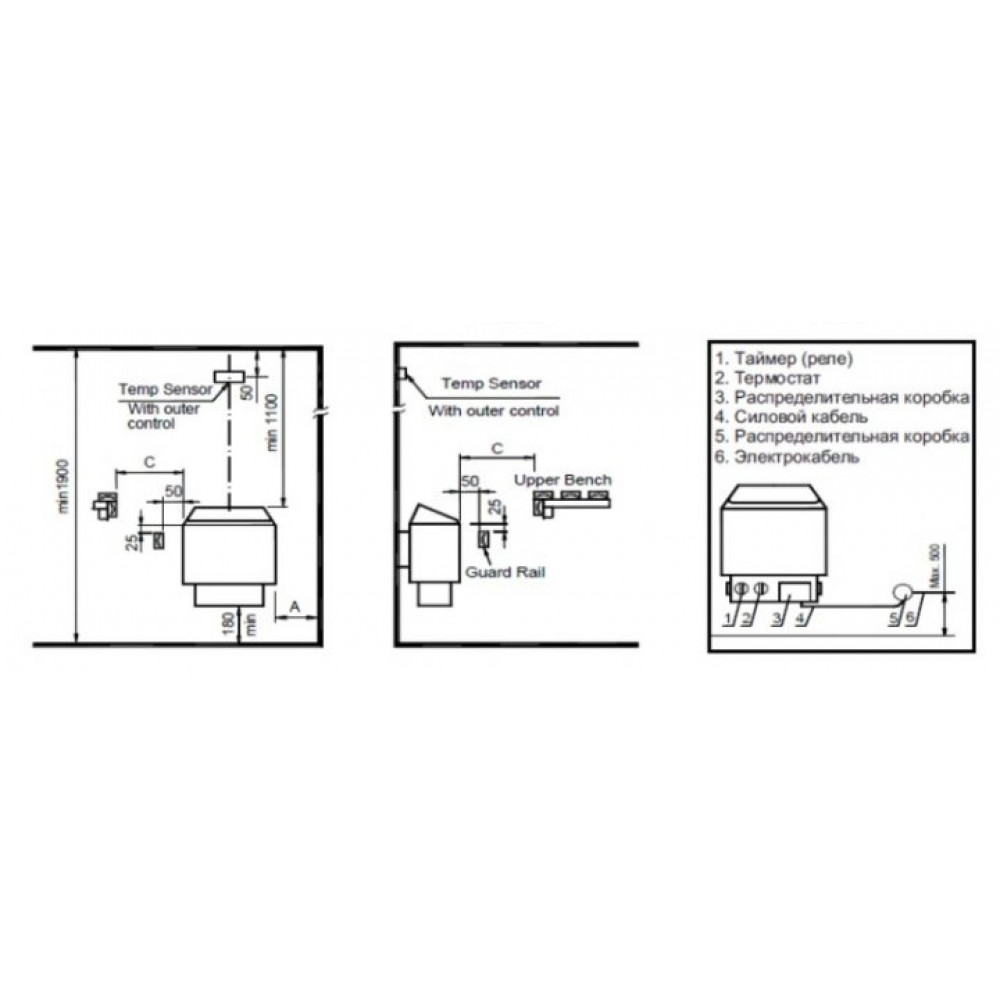

• Minimum distance: from the wall 10 cm, from the floor 18 cm, from the ceiling 110 cm;
• Oven dimensions (W x H x D): 410 x 570 x 280 mm;
• Weight: 15 kg;
• Equipment: heater, remote control panel, temperature sensor, documentation.

Important!

The room must be equipped with high-quality supply and exhaust ventilation for the stove to operate properly.
